BCGControlBar Pro for MFC
CBCGPGraphicsResourceabstract

Detailed Description

The CBCGPGraphicsResource is an abstract class that specifies a base interface of all graphics resources such as brush, pen or text format.

The following classes are derived from CBCGPGraphicsResource:

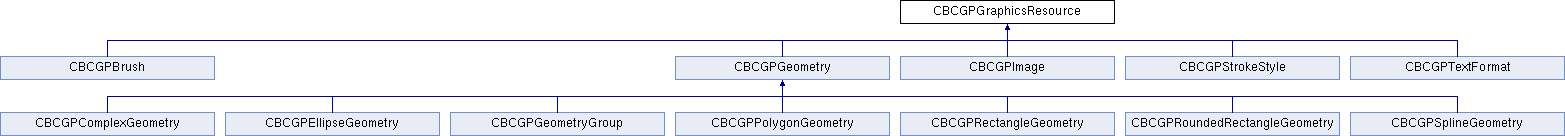

+ Inheritance diagram for CBCGPGraphicsResource:

Public Member Functions

 DestroyDestroys the resource handles.

 DetachCall this method to detach internal resource handle from this object.

 GetGraphicsManagerReturns a reference to CBCGPGraphicsManager - derived object associated with this object.

 GetHandleReturns a resource handle associated with this object.

 GetHandle1Returns a second (optional) resource handle associated with this object.

 GetHandle2Returns a third (optional) resource handle associated with this object.

 IsNullCheck whether this object has a NULL handle.

 SetCall this method to associate this object with a CBCGPGraphicsManager - derived object and resource handle(s).


Protected Member Functions

 CBCGPGraphicsResourceDefault constructor.
