BCGControlBar Pro for MFC
CBCGPAnalogClock

Detailed Description

The CBCGPAnalogClock class implements the functionality of analog clock and can be used in an application as any other circular gauge.

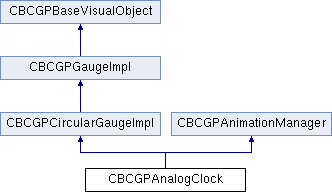

+ Inheritance diagram for CBCGPAnalogClock:

Public Member Functions

 CBCGPAnalogClockConstructor.

 EnableDateShows or hides date indicator on a clock gauge.

 EnableSecondHandShows or hides second pointer (hand).

 IsDateEnabledTells whether the date indicator is shown, or hidden.

 IsSecondHandEnabledTells whether the second pointer is visible or not.

- Public Member Functions inherited from CBCGPCircularGaugeImpl
 CBCGPCircularGaugeImplConstructor.

 AddPointerAdds a new pointer.

 AddScaleAdds a new scale.

 AddSubGaugeAdds a sub-gauge.

 EnableEquidistantLabelsEnables/disables tick mark equidistant labels.

 EnableLabelsRotationEnables/disables tick mark labels rotation around the gauge center.

 EnableShapeByTicksAreaEnables/disables gauge shape

 GetCapSizeReturns a gauge caps size.

 GetColorsReturns the circular gauge colors (color theme)

 GetPointersCountReturns the number of all gauge pointers.

 GetSubGaugeByIDGets sub gauge by identifier.

 GetSubGaugesGets all subgauges.

 GetTextFormatGets the circular gauge text labels format.

 GetTicksAreaFinishAngleReturns scale finish angle.

 GetTicksAreaStartAngleReturns scale start angle

 IsClosedTells whether scale has a closed range.

 IsEquidistantLabelsTells whether tick mark labels are equidistant.

 IsLabelRotationTells whether tick mark labels are rotated around the gauge center.

 IsShapeByTicksAreaReturns TRUE if the gauge shape is specified by the scale angles

 ModifyPointerModifies the pointer appearance.

 RemoveAllSubGaugesRemoves all sub-gauges.

 RemovePointerRemoves a pointer by index.

 RemoveSubGaugeRemoves a sub-gauge.

 SetCapSizeModify a gauge cap size.

 SetClosedRangeSets closed range for the specified scale.

 SetColorsApplies one of predefined color themes to the gauge.

 SetColorsApplies custom color theme to the gauge.

 SetTextFormatSets the circular gauge text labels format.

 SetTicksAreaAnglesDefines scale angles.

 SetValueSets a gauge value.

- Public Member Functions inherited from CBCGPGaugeImpl
 AddColoredRangeAdds a new colored range to a gauge.

 AddColoredRangeAdds a new colored range to a gauge.

 AddLevelBarAdds a new level bar to a gauge.

 AddLevelBarAdds a new level bar to a gauge.

 GetColoredRangeReturns a colored range for a scale.

 GetFrameSizeGets a gauge frame size (in pixels)

 GetLevelBarReturns a level bar for a scale.

 GetLevelBarsCountGets level bars count.

 GetScaleReturns a scale for a gauge.

 RemoveAllColoredRangesRemoves all colored ranges.

 RemoveAllLevelBarsRemoves all level bars.

 RemoveAllScalesRemoves scales.

 RemoveLevelBarRemoves the level bar.

 RemoveScaleRemoves a scale.

 SetFrameSizeSets a gauge frame size (in pixels).

 SetScaleOffsetFromFrameSets the scale offset from the gauge frame.

 SetTickMarkStyleSpecifies the gauge tick mark style.

- Public Member Functions inherited from CBCGPBaseVisualObject
 CBCGPBaseVisualObjectConstructor.

 CBCGPBaseVisualObjectCopy constructor.

 CopyToClipboardCopies visual object to the Clipboard.

 EnableImageCacheEnables or disables visual object image cache.

 ExportToBitmapExports the visual object to bitmap.

 ExportToFileExports the visual object to a file (BMP or PNG).

 ExportToImageExports the visual object to an image.

 GetDataGets an internal data object.

 GetDataAnimationTypeGets data animation type.

 GetDataCountReturns a number of data objects.

 GetEditFlagsGets editing flags.

 GetIDGets the object identifier.

 GetNameGets the object name.

 GetParentContainerGets the parent visual container.

 GetRectGets the object bounding rectangle.

 GetSelectedThemeObtain a currently selected visual theme.

 GetUserDataGets user-defined data associated with this object.

 GetValueGets the object value.

 IsAutoDestroyTells whether this object will be destroyed automatically.

 IsEditModeTells whether this object has the edit mode.

 IsEnabledTells whether the visual object is enabled.

 IsImageCacheTells whether image cache is enabled for this object.

 IsSelectedTells whether this object is selected in the parent container.

 IsVisibleTells whether the visual object is visible.

 RedrawRedraws this object.

 RedrawRectRedraws a specified rectangle.

 SetAutoDestroySpecifies whether the object should be destroyed automatically.

 SetDataAnimationTypeSets data animation type.

 SetEditFlagsSets editing flags.

 SetIDSets the object identifier.

 SetNameSets an object name.

 SetSelectedSelects or unselects the object in the parent container.

 SetUserDataSets user-defined data associated with this object.

 SetVisibleShows or hides the visual object.


Additional Inherited Members

- Public Types inherited from CBCGPGaugeImpl
enum  BCGP_SUB_GAUGE_POS
