BCGControlBar Pro for MFC
CBCGPBaseToolBar

Detailed Description

See also
CBCGPControlBar, CBCGPToollBar

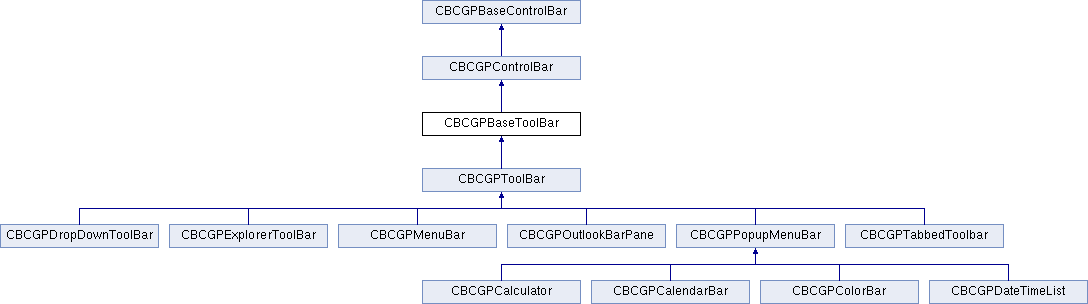

+ Inheritance diagram for CBCGPBaseToolBar:

Additional Inherited Members

- Public Member Functions inherited from CBCGPControlBar
 AdjustSizeImmediateImmediately recalculates layout of a control bar.

 CalcInsideRectCalculates the inside rectangle of a control bar taking into account the borders and grippers.

 CanBeDockedDetermines whether a control bar can be docked at the specified dock bar.

 CanBeTabbedDocumentTells whether control bar can be converted to tabbed document.

 CreateCreates the Windows control bar and attaches it to the CBCGPControlBar object.

 CreateDefaultMiniframeCreates a mini-frame window for a control bar when it's being floated.

 CreateExCreates the Windows control bar and attaches it to the CBCGPControlBar object.

 DockControlBarDocks the control bar to a dock bar.

 DoesAllowSiblingBarsIndicates whether it is possible to dock another control bar at the same row where this control bar is docked.

 FloatControlBarMakes the control bar floating.

 GetBordersReturns the width of the control bar borders.

 GetExclusiveRowModeTells whether the control bar is in exclusive row mode or not.

 OnAfterFloatCalled by the framework when a control bar has floated.

 OnBeforeChangeParentCalled by the framework when the parent of the control bar is about to be changed as a result of docking or floating operation.

 OnBeforeFloatCalled by the framework when a control bar is about to float.

 OnPressCloseButtonCalled by the framework when user presses the close button on control bar's caption.

 SetBordersSets the border values of the control bar.

 SetBordersSets the border values of the control bar.

 SetExclusiveRowModeEnables or disables the exclusive row mode.

 SetMiniFrameRTCSets the runtime class information about the default mini-frame window.

 ToggleAutoHideToggles autohide mode.

- Public Member Functions inherited from CBCGPBaseControlBar
 AddControlBarAdds a control bar to docking manager.

 AdjustDockingLayoutRedirects a call to docking manager to adjust docking layout.

 AdjustLayoutCalled by the framework when a control bar should adjust its internal layout according to a new size or position.

 CanAcceptBarDetermines whether another control bar can be docked to this control bar.

 CanAutoHideDetermines whether the control bar can be switched to autohide mode.

 CanBeAttachedCalled by the framework to determine if the control bar can be docked to another control bar or frame window.

 CanBeClosedDetermines whether the control bar may be hidden.

 CanBeResizedDetermines whether this control bar can be resized.

 CanFloatDetermines whether the control bar can float.

 CanFocusSpecifies whether a control bar can receive focus.

 CreateExCreates a Windows control.

 DoesAllowDynInsertBeforeDetermines whether it is possible to dynamically insert a control bar before this control bar.

 EnableDockingEnables docking to the main frame.

 EnableGripperEnables/disables the control caption (gripper).

 GetBarIconReturns control bar icon.

 GetBarStyleReturns the control bar style.

 GetBCGStyleReturns the library specific control bar styles.

 GetCaptionHeightReturns the gripper (caption) height.

 GetCurrentAlignmentReturns the current control bar alignment.

 GetDockRowReturns a pointer to a dock bar row.

 GetDockSiteReturns a pointer to dock site.

 GetEnabledAlignmentReturns the enabled alignment.

 GetParentMiniFrameReturns a pointer to the parent mini-frame window.

 GetParentTabWndRetrieves a pointer to the parent tabbed window.

 HideInPrintPreviewModeTells the framework whether control bar should be hidden in print preview mode.

 IsDockedDetermines whether the control bar is docked or not.

 IsHorizontalDetermines whether the control bar is docked horizontally.

 IsMDITabbedTells whether control bar is placed on MDI child window as tabbed document.

 IsVisibleDetermines whether a control bar is visible or not.

 OnControlBarContextMenuCalled by the framework when it needs to build a menu with the list of control bars.

 OnRemoveFromMiniFrameCalled by the framework when a control bar is being removed from its parent mini-frame window.

 SetBarAlignmentSets the current alignment for a control bar.

 SetBarStyleSets a control bar style

 SetDockModeSets a new docking method for a control bar.

 ShowControlBarShows or hides a control bar.

- Public Member Functions inherited from CBCGPWnd
 IsOnGlassChecks if window is located on DWM ("Glass") area of the parent window.

 IsVisualManagerStyleTells whether a window uses visual manager style.

- Public Attributes inherited from CBCGPControlBar
 m_recentDockInfoContains the recent docking information.

- Static Public Attributes inherited from CBCGPControlBar
 m_bHandleMinSizeEnables consistent handling of minimal size.

- Protected Member Functions inherited from CBCGPControlBar
 OnAfterDockCalled by the framework when a control bar has been docked.

 OnBeforeDockCalled by the framework when the control bar is about to be docked.

- Protected Member Functions inherited from CBCGPBaseControlBar
 DoPaintPaints the control bar.

- Protected Member Functions inherited from CBCGPGestureBase
 OnGestureEventBeginCalled by the framework to handle BCGP_GID_BEGIN notification.

 OnGestureEventEndCalled by the framework to handle BCGP_GID_END notification.

 OnGestureEventPanCalled by the framework to handle BCGP_GID_PAN notification

 OnGestureEventPressAndTapCalled by the framework to handle BCGP_GID_PRESSANDTAP notification.

 OnGestureEventRotateCalled by the framework to handle BCGP_GID_ROTATE notification.

 OnGestureEventTwoFingerTapCalled by the framework to handle BCGP_GID_TWOFINGERTAP notification.

 OnGestureEventZoomCalled by the framework to handle BCGP_GID_ZOOM notification.

 ProcessGestureEventThis method should be called from WM_GESTURE message handler.
