CBCGPDockingControlBar

Detailed Description

The CBCGPDockingControlBar class implements a control bar with the following functionality:

  • dock to a main frame window
  • switch to autohide mode
  • attach to a tabbed window
  • float in a mini frame
  • dock to another control bar that is floating in a mini frame window
  • free resizing
  • load/save state from/to the Windows registry
  • can be created with or without caption. The caption may have a text and may be filled with gradient color
  • can be dragged with or without (using drag rectangle) context

To use a docking control bar in your application you must derive your control bar class from the CBCGPDockingControlBar class. It's advisable to embed the derived object into the main frame window object (or to a window object that will control the instance of your bar). Call the CBCGPDockingControlBar::Create or CBCGPDockingControlBar::CreateEx member function when you process WM_CREATE message in the main frame window. Setup the control bar object by calling CBCGPDockingControlBar::EnableDocking, CBCGPDockingControlBar::DockControlBar, CBCGPDockingControlBar::AttachToTabWnd.

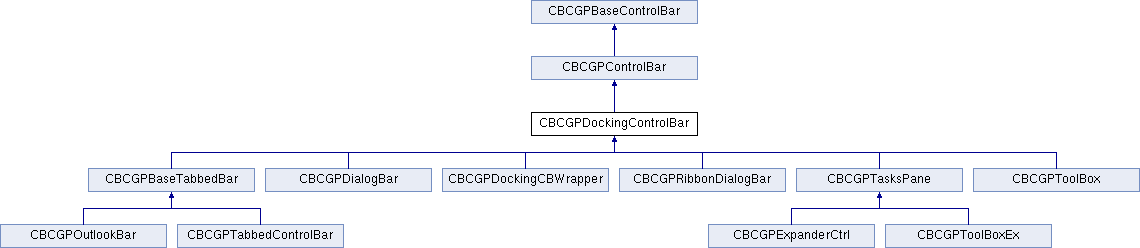

+ Inheritance diagram for CBCGPDockingControlBar:

Public Types

enum  CaptionType


Public Member Functions

 CBCGPDockingControlBarConstructs the object.

 AttachToTabWndAttaches the control bar to another control bar creating a tabbed control bar.

 CanAcceptBarDetermines whether another control bar can be docked to this control bar.

 CanBeAttachedCalled by the framework to determine if the control bar can be docked to another control bar or frame window.

 CreateCreates the Windows control and attaches it to the CBCGPDockingControlBar object.

 CreateCreates the Windows control and attaches it to the CBCGPDockingControlBar object.

 CreateExCreates the Windows control and attaches it to the CBCGPDockingControlBar object.

 CreateTabbedControlBarCalled by the framework when it needs to create a tabbed control bar from this control bar.

 DockToWindowDocks the docking control bar to another docking control bar.

 EnableAutohideAllEnables/disables auto-hide mode

 EnableGripperShows or hides the caption (gripper).

 GetCaptionGets a panes' caption.

 GetCaptionHeightReturns the current caption's height.

 GetDefaultSliderReturns a pointer to the default slider of the control bar's container.

 GetIconIndexReturn a docking pane icon index.

 GetPaneInfoCalled by the framework to obtain the docking pane information displayed in Windows Navigator (invoked by Ctrl+Tab).

 GetTabbedControlBarRTCReturns a pointer to the runtime class information of a tabbed window to be created when another control bar is docked to this control bar as a new tab.

 GetTabCustomLabelGets a tab custom label.

 HasAutoHideModeTells whether a docking control bar can be switched to the autohide mode.

 HitTestCalled by the framework to get a hit-test value from the point.

 IsAutohideAllEnabledIndicates whether the docking control bar can be put into autohide mode along with other control bars in container, when the user presses pin button holding Ctrl key.

 IsAutoHideModeDetermines whether a control bar is in autohide mode or not.

 IsDockedDetermines whether the control bar is docked or not.

 IsHideInAutoHideModeCalled by the framework to determine the control bar behavior in autohide mode when the control bar is shown or hidden by ShowControlBar().

 IsVisibleDetermines whether the control bar is visible or not.

 IsVisibleInWindowsNavigatorCalled by the framework to check whether this pane should be visible in Windows Navigator.

 OnAfterDockFromMiniFrameCalled by the framework when a docking bar has been docked to frame window from floating state.

 SetAutoHideModeSwitches the bar to the autohide mode and back

 SetIconIndexSets the docking pane icon index.

 SetTabbedControlBarRTCSets the runtime class information of a tabbed window to be created when two docking control bars produce a tabbed window.

 SetTabCustomLabelSets a tab custom label.

 ShowControlBarShows or hides a control bar.

 SlideCalled by the framework to begin showing or hiding of a control bar in autohide mode.

 UnDockControlBarUndocks a control bar from the main frame window or from multiminiframe window container.

- Public Member Functions inherited from CBCGPControlBar
 AdjustSizeImmediateImmediately recalculates layout of a control bar.

 CalcInsideRectCalculates the inside rectangle of a control bar taking into account the borders and grippers.

 CanBeDockedDetermines whether a control bar can be docked at the specified dock bar.

 CanBeTabbedDocumentTells whether control bar can be converted to tabbed document.

 CreateCreates the Windows control bar and attaches it to the CBCGPControlBar object.

 CreateDefaultMiniframeCreates a mini-frame window for a control bar when it's being floated.

 CreateExCreates the Windows control bar and attaches it to the CBCGPControlBar object.

 DockControlBarDocks the control bar to a dock bar.

 DoesAllowSiblingBarsIndicates whether it is possible to dock another control bar at the same row where this control bar is docked.

 FloatControlBarMakes the control bar floating.

 GetBordersReturns the width of the control bar borders.

 GetExclusiveRowModeTells whether the control bar is in exclusive row mode or not.

 OnAfterFloatCalled by the framework when a control bar has floated.

 OnShowControlBarMenuCalled by the framework when a special control bar menu is about to be displayed.

 SetBordersSets the border values of the control bar.

 SetBordersSets the border values of the control bar.

 SetExclusiveRowModeEnables or disables the exclusive row mode.

 SetMiniFrameRTCSets the runtime class information about the default mini-frame window.

- Public Member Functions inherited from CBCGPBaseControlBar
 AddControlBarAdds a control bar to docking manager.

 AdjustDockingLayoutRedirects a call to docking manager to adjust docking layout.

 AdjustLayoutCalled by the framework when a control bar should adjust its internal layout according to a new size or position.

 CanBeClosedDetermines whether the control bar may be hidden.

 CanBeResizedDetermines whether this control bar can be resized.

 CanFloatDetermines whether the control bar can float.

 CanFocusSpecifies whether a control bar can receive focus.

 CreateExCreates a Windows control.

 DoesAllowDynInsertBeforeDetermines whether it is possible to dynamically insert a control bar before this control bar.

 EnableDockingEnables docking to the main frame.

 GetBarIconReturns control bar icon.

 GetBarStyleReturns the control bar style.

 GetBCGStyleReturns the library specific control bar styles.

 GetCurrentAlignmentReturns the current control bar alignment.

 GetDockModeReturns the current dock mode for the control bar.

 GetDockRowReturns a pointer to a dock bar row.

 GetDockSiteReturns a pointer to dock site.

 GetEnabledAlignmentReturns the enabled alignment.

 GetParentMiniFrameReturns a pointer to the parent mini-frame window.

 GetParentTabWndRetrieves a pointer to the parent tabbed window.

 HideInPrintPreviewModeTells the framework whether control bar should be hidden in print preview mode.

 IsHorizontalDetermines whether the control bar is docked horizontally.

 IsMDITabbedTells whether control bar is placed on MDI child window as tabbed document.

 OnControlBarContextMenuCalled by the framework when it needs to build a menu with the list of control bars.

 OnRemoveFromMiniFrameCalled by the framework when a control bar is being removed from its parent mini-frame window.

 SetBarAlignmentSets the current alignment for a control bar.

 SetBarStyleSets a control bar style

 SetDockModeSets a new docking method for a control bar.


Static Public Member Functions

 GetDragSencitivityReturns the drag sensitivity of a docking control bar.


Static Public Attributes

 m_bDisableAnimationIf TRUE, the autohide animation will be disabled. If FALSE, autohide animation will be enabled.

 m_bHideInAutoHideModeDetermines the control bar behavior in autohide mode.

 m_nSlideStepsSpecifies the number of steps to show or hide in autohide mode.

- Static Public Attributes inherited from CBCGPControlBar
 m_bHandleMinSizeEnables consistent handling of minimal size.


Protected Member Functions

 CheckAutoHideConditionCalled be the framework to determine whether the docking control bar should be hidden (in autohide mode).

 CheckStopSlideConditionCalled by the framework to determine when an autohide docking control bar should stop sliding.

 DrawCaptionDraws the docking control bar caption (gripper).

 OnPressButtonsCalled when the user presses a caption button other than HTCLOSE_BCG and HTMAXBUTTON buttons.

 OnScrollClientCalled by the framework when it needs to scroll content of a docking control bar.

 OnSlideCalled by the framework to render the autohide effect when the control bar is being shown or hidden.

 ScrollHorzAvailableCalled by the framework to determine whether a docking control bar can be scrolled horizontally.

 ScrollVertAvailableCalled by the framework to determine whether a docking control bar can be scrolled vertically.

- Protected Member Functions inherited from CBCGPControlBar
 OnBeforeDockCalled by the framework when the control bar is about to be docked.

- Protected Member Functions inherited from CBCGPBaseControlBar
 DoPaintPaints the control bar.


Static Protected Attributes

 m_sizeDragSencitivitySpecifies the drag sensitivity of a docking control bar.


Additional Inherited Members

- Public Attributes inherited from CBCGPControlBar
 m_recentDockInfoContains the recent docking information.
