BCGControlBar Library for .NET
MDIClientArea Class
Members




Inherits Panel Class of System.Windows.Forms.

Represents the area  where MDIContainers for multiple-document interface (MDI) child forms are located.  The instance of this object will be created only if child forms are tabbed documents.

The instance of MDIClientArea is created when we set the parameter value of  EnableMDITabs method in class LayoutController  equal true. The access to the instance of the current MDIClientArea you can get by means of methods GetMdiClient of LayoutController.

The properties of MDIClientArea class allow to get an access to current active MDI container, active docking pane, active MDI form, active Tab Item.  Property TabAlignment specifies the location of tab control in MDIContainers of this MDIClientArea. Method AddMDIContainer   allows to add an MDIContainer to MDIContainerCollection belongs to this MDIClientArea. Also methods FindTabItemByControl and FindTabItemByName allows to find specified TabItem.

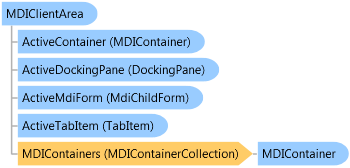

Object Model
MDIClientArea ClassMDIContainer ClassDockingPane ClassMdiChildForm ClassTabItem ClassMDIContainerCollection ClassMDIContainer Class
Syntax
'Declaration

Public Class MDIClientArea
   Inherits System.Windows.Forms.Panel
'Usage

Dim instance As MDIClientArea
public class MDIClientArea : System.Windows.Forms.Panel
public __gc class MDIClientArea : public System.Windows.Forms.Panel
public ref class MDIClientArea : public System.Windows.Forms.Panel
Inheritance Hierarchy

System.Object
   System.MarshalByRefObject
      System.ComponentModel.Component
         System.Windows.Forms.Control
            System.Windows.Forms.ScrollableControl
               System.Windows.Forms.Panel
                  BCGSoft.ControlBars.MDIClientArea

Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

See Also

Reference

MDIClientArea Members
BCGSoft.ControlBars Namespace
