ToolbarTrackBarButton Class

Represents a Toolbar Button which contains a Track bar control in it.

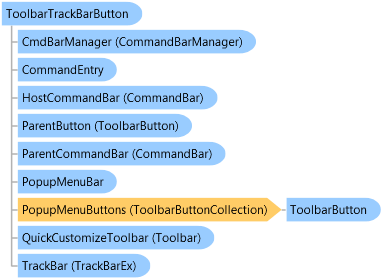

Object Model

Syntax

Visual Basic
C#
Managed Extensions for C++
C++/CLI

'Declaration

Public Class ToolbarTrackBarButton
   Inherits ToolbarBaseControlButton
   Implements BCGSoft.Controls.Shared.ICommandObject, BCGSoft.Shared.ISupportCmdUI

'Usage

Dim instance As ToolbarTrackBarButton

public class ToolbarTrackBarButton : ToolbarBaseControlButton, BCGSoft.Controls.Shared.ICommandObject, BCGSoft.Shared.ISupportCmdUI

public __gc class ToolbarTrackBarButton : public ToolbarBaseControlButton, BCGSoft.Controls.Shared.ICommandObject, BCGSoft.Shared.ISupportCmdUI

public ref class ToolbarTrackBarButton : public ToolbarBaseControlButton, BCGSoft.Controls.Shared.ICommandObject, BCGSoft.Shared.ISupportCmdUI

Remarks

The ToolbarTrackButton is usually added to the RibbonStatusBar. The embedded TrackBar represents a scrollable control. It allows to select any value between minimum and maximum values.

Inheritance Hierarchy

System.Object
   System.MarshalByRefObject
      System.ComponentModel.Component
         BCGSoft.Controls.Shared.CommandObject
            BCGSoft.Controls.Shared.CommandButton
               BCGSoft.ControlBars.ToolbarButton
                  BCGSoft.ControlBars.ToolbarMenuButton
                     BCGSoft.ControlBars.ToolbarBaseControlButton
                        BCGSoft.ControlBars.ToolbarTrackBarButton

Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

Reference

ToolbarTrackBarButton Members
BCGSoft.ControlBars Namespace
