PropertyListItem Class

Inherits from Component class of System.ComponentModel.Component namespace.

Implements interface INotifyPropertyChanged, IScreenRectProvider.

Use the PropertyListItem object to add new property to the property list item. The method AddOption allows to add values of different types to the dropdown list of items from which the user can select one. If the list item is editable, on left button mouse click on this item the InPlaceEdit control will be created. As a rule it is an editbox or combobox, sometimes a list item with a button. Clicking on it we can get any custom popup window, for example, for selecting color.

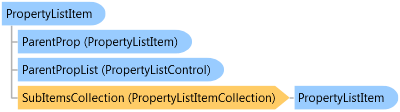

Object Model

Syntax

Visual Basic
C#
Managed Extensions for C++
C++/CLI

'Declaration

Public Class PropertyListItem
   Inherits System.ComponentModel.Component
   Implements BCGSoft.Controls.Shared.IScreenRectProvider

'Usage

Dim instance As PropertyListItem

public class PropertyListItem : System.ComponentModel.Component, BCGSoft.Controls.Shared.IScreenRectProvider

public __gc class PropertyListItem : public System.ComponentModel.Component, BCGSoft.Controls.Shared.IScreenRectProvider

public ref class PropertyListItem : public System.ComponentModel.Component, BCGSoft.Controls.Shared.IScreenRectProvider

Inheritance Hierarchy

System.Object
   System.MarshalByRefObject
      System.ComponentModel.Component
         BCGSoft.Controls.PropertyList.PropertyListItem
            BCGSoft.Controls.PropertyList.PropertyListColorItem
            BCGSoft.Controls.PropertyList.PropertyListFontItem

Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

Reference

PropertyListItem Members
BCGSoft.Controls.PropertyList Namespace
