BCGControlBar Pro for MFC
CBCGPRibbonEdit

Detailed Description

The CBCGPRibbonEdit class implements an edit control placed on Ribbon Control.

See also
CBCGPRibbonBar

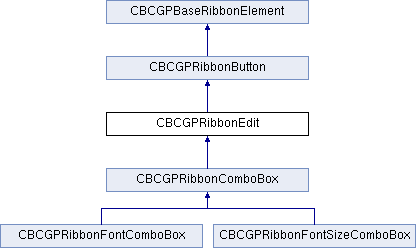

+ Inheritance diagram for CBCGPRibbonEdit:

Public Member Functions

 CBCGPRibbonEditConstructs ribbon edit box object.

 CreateEditCreates in-place edit control.

 EnableSearchModeDisplays or hides "Find" and "Clear" icons at the right side of edit control.

 EnableSpinButtonsShows or hides spin buttons at the right side of edit control.

 GetEditTextObtains text from edit box.

 GetPromptReturns a prompt (displayed when the edit box text is empty).

 GetSearchPromptReturns default text displayed within edit control in "search" mode.

 GetTextAlignReturns alignment of text.

 IsAutoCompleteListTells whither the auto-complete mode is enabled.

 IsDisableFrameAccelTableOnFocusTells whether to suppress handling of the keyboard accelerators in the top-level frame when the control is being focused.

 IsReadOnlyTells whether the Ribbon edit box is read-only or not.

 IsSearchModeTells whether "search" mode has been enabled for the edit control.

 SetAutoCompleteListSpecifies whether the auto-complete mode is enabled.

 SetDisableFrameAccelTableOnFocusSpecifies whether to suppress handling of the keyboard accelerators in the top-level frame when the control is being focused.

 SetEditTextSets a text to edit control..

 SetReadOnlySets or unsets read-only flag of the Ribbon edit box.

 SetTextAlignSets alignment of text.

 SetWidthSets the width of CBCGPRibbonEdit control.

- Public Member Functions inherited from CBCGPRibbonButton
 CBCGPRibbonButtonConstruct ribbon button object.

 CBCGPRibbonButtonConstruct ribbon button object.

 CBCGPRibbonButtonConstruct ribbon button object.

 AddSubItemAllows to create a popup menu on the fly by dynamically adding new ribbon elements.

 ClosePopupDlgCalled by the framework when the popup dialog is closed.

 EnablePopupDialogEnables the popup dialog associated with this button.

 EnablePopupDialogEnables the popup dialog associated with this button.

 FindSubItemIndexByIDReturns index of sub-item by its command ID.

 GetImageIndexReturns button's image index in associated image list.

 GetMenuReturns a handle to Windows menu assigned to button.

 IsDefaultCommandTells whether button can execute its default command.

 IsRightAlignMenuTells whether the menu is right aligned, or not.

 OnBeforeShowPopupDlgCalled by the framework before the popup dialog is displayed.

 OnClickCalled by the framework when user clicks a button.

 RemoveAllSubItemsRemoves all menu items from popup menu.

 RemoveSubItemRemoves a sub-item.

 SetAlwaysLargeImageEnables or disables transition to collapsed state.

 SetDefaultCommandTells the button that it can execute its default command.

 SetImageIndexSets button's image index in associated image list.

 SetMenuAssigns a popup menu to ribbon button.

 SetMenuAssigns a popup menu to ribbon button.

 SetRightAlignMenuSets popup menu alignment.

- Public Member Functions inherited from CBCGPBaseRibbonElement
 CanBeRemovedFromQATTells whether ribbon element can be removed from QAT.

 GetApplicationModesGets application modes where this control is visible.

 GetCursorAllows to specify a Ribbon control's custom mouse cursor.

 GetDataRetrieves a user-defined data associated with ribbon element.

 GetDescriptionReturns ribbon element description.

 GetIDReturns ribbon element command ID.

 GetKeysReturns key tip associated with ribbon element.

 GetMenuKeysReturns key tips associated with split button.

 GetRectReturns bounding rectangle of ribbon element.

 GetSimplifiedModeTypeRetrieves a ribbon element appearance in the Ribbon simplified mode.

 GetSizeReturns current size of ribbon element.

 GetTextReturns ribbon element text.

 IsBackstageViewModeTells whether a ribbon element works in "backstage view" mode.

 IsCheckedTells whether ribbon element is checked.

 IsCompactModeTells whether ribbon element is in compact mode.

 IsDisabledTells whether ribbon element is disabled.

 IsFocusedTells whether ribbon element is focused.

 IsHiddenInFullModeTells whether a ribbon element is invisible in the Ribbon classic (non-simplified) mode.

 IsPressedTells whether ribbon element is pressed.

 SetDataAssociates a user-defined data with ribbon element.

 SetIDSets command ID of ribbon element.

 SetKeysSets a key tip for ribbon element.

 SetSimplifiedModeTypeSpecifies a ribbon element appearance in the Ribbon simplified mode.

 SetToolTipTextSets tooltip text for ribbon element.


Protected Member Functions

 CommonInitCreates the spin control.

- Protected Member Functions inherited from CBCGPBaseRibbonElement
 OnBeforeDestroyParentMenuBarCalled by the framework before the parent menu windo is destroyed.

 OnProcessKeyCalled by the framework when a ribbon element should process keyboard input.


Additional Inherited Members

- Public Types inherited from CBCGPBaseRibbonElement
enum  RibbonElementLocation

enum  RibbonImageType

enum  RibbonSimplifiedModeType
