CBCGPControlBar

Detailed Description

The CBCGPControlBar class is a replacement for MFC's CControlBar. See the MFC documentation for more information about control bars.

The interface of CBCGPControlBar is fully compatible with CControlBar.

Usually, you shouldn't instantiate CBCGPControlBar objects directly. If you need the docking (and resizable) control bar functionality, you should derive your object from CBCGPDockingControlBar, if you need the toolbar functionality, use CBCGPToolBar.

When you derive your class from the CBCGPControlBar class, your class receives an ability to be docked at a dock bar and float in a mini frame window.

If you're migrating your existing project from MFC to BCGControlBar Library Professional Edition, you have to replace all occurrences of CControlBar with CBCGPControlBar.

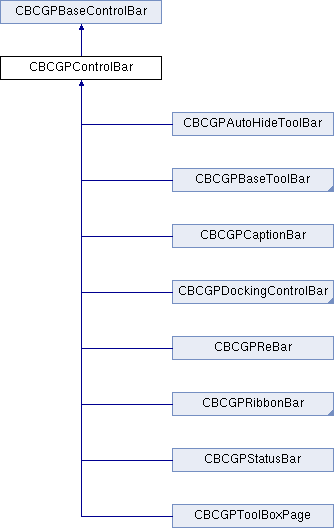

Inheritance diagram for CBCGPControlBar:

Public Member Functions
	AdjustSizeImmediate	Immediately recalculates layout of a control bar.
	CalcInsideRect	Calculates the inside rectangle of a control bar taking into account the borders and grippers.
	CanBeDocked	Determines whether a control bar can be docked at the specified dock bar.
	CanBeTabbedDocument	Tells whether control bar can be converted to tabbed document.
	Create	Creates the Windows control bar and attaches it to the CBCGPControlBar object.
	CreateDefaultMiniframe	Creates a mini-frame window for a control bar when it's being floated.
	CreateEx	Creates the Windows control bar and attaches it to the CBCGPControlBar object.
	DockControlBar	Docks the control bar to a dock bar.
	DoesAllowSiblingBars	Indicates whether it is possible to dock another control bar at the same row where this control bar is docked.
	FloatControlBar	Makes the control bar floating.
	GetBorders	Returns the width of the control bar borders.
	GetExclusiveRowMode	Tells whether the control bar is in exclusive row mode or not.
	OnAfterChangeParent	Called by the framework when the parent of a control bar has changed.
	OnAfterFloat	Called by the framework when a control bar has floated.
	OnBeforeChangeParent	Called by the framework when the parent of the control bar is about to be changed as a result of docking or floating operation.
	OnBeforeFloat	Called by the framework when a control bar is about to float.
	OnPressCloseButton	Called by the framework when user presses the close button on control bar's caption.
	OnShowControlBarMenu	Called by the framework when a special control bar menu is about to be displayed.
	SetBorders	Sets the border values of the control bar.
	SetBorders	Sets the border values of the control bar.
	SetExclusiveRowMode	Enables or disables the exclusive row mode.
	SetMiniFrameRTC	Sets the runtime class information about the default mini-frame window.
	ToggleAutoHide	Toggles autohide mode.
Public Member Functions inherited from CBCGPBaseControlBar
	AddControlBar	Adds a control bar to docking manager.
	AdjustDockingLayout	Redirects a call to docking manager to adjust docking layout.
	AdjustLayout	Called by the framework when a control bar should adjust its internal layout according to a new size or position.
	CanAcceptBar	Determines whether another control bar can be docked to this control bar.
	CanAutoHide	Determines whether the control bar can be switched to autohide mode.
	CanBeAttached	Called by the framework to determine if the control bar can be docked to another control bar or frame window.
	CanBeClosed	Determines whether the control bar may be hidden.
	CanBeResized	Determines whether this control bar can be resized.
	CanFloat	Determines whether the control bar can float.
	CanFocus	Specifies whether a control bar can receive focus.
	CreateEx	Creates a Windows control.
	DoesAllowDynInsertBefore	Determines whether it is possible to dynamically insert a control bar before this control bar.
	EnableDocking	Enables docking to the main frame.
	EnableGripper	Enables/disables the control caption (gripper).
	GetBarIcon	Returns control bar icon.
	GetBarStyle	Returns the control bar style.
	GetBCGStyle	Returns the library specific control bar styles.
	GetCaptionHeight	Returns the gripper (caption) height.
	GetCurrentAlignment	Returns the current control bar alignment.
	GetDockMode	Returns the current dock mode for the control bar.
	GetDockRow	Returns a pointer to a dock bar row.
	GetDockSite	Returns a pointer to dock site.
	GetEnabledAlignment	Returns the enabled alignment.
	GetParentMiniFrame	Returns a pointer to the parent mini-frame window.
	GetParentTabWnd	Retrieves a pointer to the parent tabbed window.
	HideInPrintPreviewMode	Tells the framework whether control bar should be hidden in print preview mode.
	IsDocked	Determines whether the control bar is docked or not.
	IsHorizontal	Determines whether the control bar is docked horizontally.
	IsMDITabbed	Tells whether control bar is placed on MDI child window as tabbed document.
	IsVisible	Determines whether a control bar is visible or not.
	OnControlBarContextMenu	Called by the framework when it needs to build a menu with the list of control bars.
	OnRemoveFromMiniFrame	Called by the framework when a control bar is being removed from its parent mini-frame window.
	SetBarAlignment	Sets the current alignment for a control bar.
	SetBarStyle	Sets a control bar style
	SetDockMode	Sets a new docking method for a control bar.
	ShowControlBar	Shows or hides a control bar.

Public Attributes
	m_recentDockInfo	Contains the recent docking information.

Static Public Attributes
	m_bHandleMinSize	Enables consistent handling of minimal size.

Protected Member Functions
	OnAfterDock	Called by the framework when a control bar has been docked.
	OnBeforeDock	Called by the framework when the control bar is about to be docked.
Protected Member Functions inherited from CBCGPBaseControlBar
	DoPaint	Paints the control bar.
