CBCGPVisualManagerVS2022

Detailed Description

CBCGPVisualManagerVS22 is responsible for giving an application Microsoft Visual Studio 22 look and feel.

To enable this visual manager just call

CBCGPVisualManager::SetDefaultManager (RUNTIME_CLASS (CBCGPVisualManagerVS22));

Or, if you application class is derived from CBCGPWinApp,

theApp.SetVisualTheme(CBCGPWinApp::BCGP_VISUAL_THEME_VS_22_*);

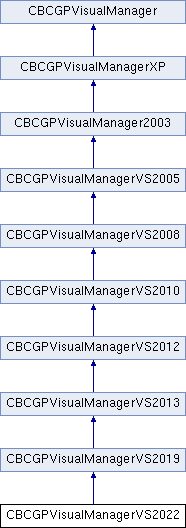

Inheritance diagram for CBCGPVisualManagerVS2022:

Additional Inherited Members
Public Member Functions inherited from CBCGPVisualManagerVS2012
	IsAutoGrayscaleImages	Tells whether to convert all images to gray scale.
Public Member Functions inherited from CBCGPVisualManager
	DrawGanttChartBackground	Called by the framework to draw Gantt Chart background.
	DrawGanttHeaderText	Called by the framework to draw text in a Gantt control header cell.
	DrawGanttItemBackgroundCell	Called by the framework to fill background of a Gantt cell.
	GetEditCtrlSelectionBkColor	Returns background color of Advanced Edit control selection.
	GetEditCtrlSelectionTextColor	Returns foreground color of Advanced Edit control selection.
	GetMainButtonColor	Returns color of main Ribbon button (pearl).
	GetMenuShadowDepth	Returns a value that determines what is the width and height of the menu shadow.
	GetPopupMenuBorderSize	Returns border size for popup menus.
	GetURLLinkColor	Returns a text color of URL link to be used by CBCGPURLLinkButton
	IsEmbossDisabledImage	Determines whether disabled images should be embossed.
	IsFadeInactiveImage	Determines whether toolbar/menu inactive images are drawn with the lighting (fading) effect.
	IsLook2000	Tells whether the application's GUI elements have Microsoft Office 2000 look and feel.
	IsMenuFlatLook	Tells whether the menu buttons have the flat look (menu buttons don't look pressed).
	IsOfficeXPStyleMenus	Tells whether the visual manager uses displays OfficeXP-style menus.
	IsShadowHighlightedImage	Determines whether the shadow should be displayed when rendering highlighted images.
	OnDrawAppBarCaption	Draws application bar caption.
	OnDrawDlgSizeBox	Called by the framework to draw size box on resizable dialogs.
	OnDrawPropSheetListItem	Called by the framework do draw an item displayed on the list located at the left side of property sheet working in PropSheetLook_List mode.
	OnDrawRibbonCaption	Called by the framework to draw caption of main frame when ribbon bar is integrated with the frame.
	OnDrawRibbonComboDropButton	Called by the framework to draw ribbon combobox drop button.
	OnDrawRibbonLabel	Called by the framework to draw ribbon label.
	OnDrawRibbonMainPanelButtonBorder	Called by the framework to draw border of ribbon button located on the main panel.
	OnDrawRibbonMainPanelFrame	Called by the framework to draw frame around main panel.
	OnDrawRibbonPanelCaption	Called by the framework to draw ribbon panel's caption.
	OnDrawTabCloseButton	Called by the framework when it needs to draw the close button on active tab.
	OnFillHeaderCtrlBackground	Called by the framework when it needs to fill the background of a header control.
	OnFillRibbonBackstageForm	Called by the framework when it needs to draw background for a child dialog placed on backstage view.
	OnFillRibbonMainPanelButton	Called by the framework to fill interior of ribbon button located on the main panel.
	OnFillSplitterBackground	Called by the framework when it needs to fill background of a split window.
	SetEmbossDisabledImage	Enables or disables the "embossed" mode for disabled toolbar images .
	SetFadeInactiveImage	Enables or disables the lighting (fading) effect for toolbar/menu inactive (non-highlighted) images.
	SetLook2000	Sets a flag indicating whether the application GUI elements have Microsoft Office 2000 look and feel.
	SetMainButtonColor	Sets color of main Ribbon button (pearl).
	SetMenuFlatLook	Sets a flag indicating whether the application menu buttons have the flat look.
	SetMenuShadowDepth	Sets the width and height of the menu shadow.
	SetShadowHighlightedImage	Sets a flag that indicates whether to display the shadow when rendering highlighted images.
Static Public Member Functions inherited from CBCGPVisualManagerVS2012
	SetAccentColor	Sets an accent color to one of predefined colors.
	SetAccentColorRGB	Sets an accent color to a user-defined color.
	SetFrameColor	Specifies the non-client area custom colors.
	SetStateColor	Sets a current state color (predefined).
	SetStateColorRGB	Sets a current state color (custom).
Static Public Member Functions inherited from CBCGPVisualManager2003
	IsDefaultWinXPColorsEnabled	Tells whether the Visual Manager uses native WindowsXP theme colors or colors obtained from GetSysColor.
	IsUseGlobalTheme	Tells whether a global Windows theme is used.
	SetDefaultWinXPColors	Specifies whether to use native WindowsXP theme colors or colors obtained from GetSysColor.
	SetUseGlobalTheme	Enables or disables using of Windows global theme.
Static Public Member Functions inherited from CBCGPVisualManager
	GetInstance	Returns a pointer to the visual manager object.
	RedrawAll	Forces all control bars in the application to be redrawn.
	SetDefaultManager	Sets the default visual manager.
Static Public Attributes inherited from CBCGPVisualManagerVS2012
	m_bAutoGrayscaleImages	Controls how the Visual Manager implementing Microsoft Visual Studio 2012 theme handles images.
	m_bThinSlider	Specifies whether the slider (docking pane divider) should be thin (1-pixel) or not.
