CBCGPVisualManager2007

Detailed Description

CBCGPVisualManager2007 is responsible for giving an application Microsoft Office 2007 look and feel.

To enable this visual manager just call

CBCGPVisualManager::SetDefaultManager (RUNTIME_CLASS (CBCGPVisualManager2007));

Or, if you application class is derived from CBCGPWinApp,

theApp.SetVisualTheme(CBCGPWinApp::BCGP_VISUAL_THEME_OFFICE_2007_*);

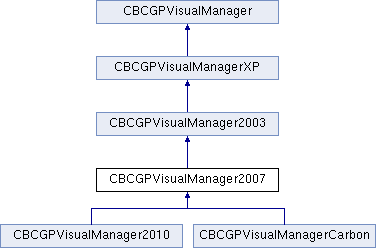

Inheritance diagram for CBCGPVisualManager2007:

Additional Inherited Members
Public Member Functions inherited from CBCGPVisualManager
	BreadcrumbFillBackground	Called to fill background of Breadcrumb Navigation Bar.
	DrawGanttChartBackground	Called by the framework to draw Gantt Chart background.
	DrawGanttHeaderText	Called by the framework to draw text in a Gantt control header cell.
	DrawGanttItemBackgroundCell	Called by the framework to fill background of a Gantt cell.
	GetButtonExtraBorder	Returns the extra size of buttons that is required to display this skin correctly.
	GetControlFillColor	Gets "typical" control background color.
	GetControlTextColor	Gets "typical" control foreground color.
	GetDockingTabsBordersSize	Returns border size of docked tabbed bar.
	GetEditCtrlSelectionBkColor	Returns background color of Advanced Edit control selection.
	GetEditCtrlSelectionTextColor	Returns foreground color of Advanced Edit control selection.
	GetMainButtonColor	Returns color of main Ribbon button (pearl).
	GetMDITabsBordersSize	Returns border size of MDITabs window.
	GetMenuShadowDepth	Returns a value that determines what is the width and height of the menu shadow.
	GetPopupMenuBorderSize	Returns border size for popup menus.
	GetRibbonComboTextColor	Returns a ribbon combobox foreground color.
	GetURLLinkColor	Returns a text color of URL link to be used by CBCGPURLLinkButton
	GetWindowCornerType	Called by the framework to obtain a specific window corner type (BCG_WINDOW_CORNER_TYPE).
	HasOverlappedAutoHideButtons	Tells whether autohide buttons are overlapped.
	IsAutoGrayscaleImages	Tells whether to convert all images to gray scale.
	IsAutohideScrollBars	Tells whether the current Visual Manager supports auto-hidden scroll bar look.
	IsDockingTabUpperCase	Tells whether visualization code should draw a docking tab label in the upper case.
	IsEditSyntaxHilightingOnSelection	Tells whether syntax hilighting in selected (colored) areas of advanced edit control is available for this visual theme.
	IsEmbossDisabledImage	Determines whether disabled images should be embossed.
	IsFadeInactiveImage	Determines whether toolbar/menu inactive images are drawn with the lighting (fading) effect.
	IsLook2000	Tells whether the application's GUI elements have Microsoft Office 2000 look and feel.
	IsMenuFlatLook	Tells whether the menu buttons have the flat look (menu buttons don't look pressed).
	IsOfficeXPStyleMenus	Tells whether the visual manager uses displays OfficeXP-style menus.
	IsShadowHighlightedImage	Determines whether the shadow should be displayed when rendering highlighted images.
	OnDrawAppBarCaption	Draws application bar caption.
	OnDrawControlBarCaptionText	Called to draw a text on a caption of control bar.
	OnDrawPropSheetListItem	Called by the framework do draw an item displayed on the list located at the left side of property sheet working in PropSheetLook_List mode.
	OnDrawRibbonComboDropButton	Called by the framework to draw ribbon combobox drop button.
	OnDrawRibbonLabel	Called by the framework to draw ribbon label.
	OnDrawSpinButtons	Called by the framework to draw spin buttons.
	OnDrawTabCloseButton	Called by the framework when it needs to draw the close button on active tab.
	OnDrawTabContent	Called by the framework when it needs to draw the tab interior (images, texts).
	OnFillHeaderCtrlBackground	Called by the framework when it needs to fill the background of a header control.
	OnFillPropList	Called to fill background of property list.
	OnFillRibbonBackstageForm	Called by the framework when it needs to draw background for a child dialog placed on backstage view.
	OnFillSplitterBackground	Called by the framework when it needs to fill background of a split window.
	SetEmbossDisabledImage	Enables or disables the "embossed" mode for disabled toolbar images .
	SetFadeInactiveImage	Enables or disables the lighting (fading) effect for toolbar/menu inactive (non-highlighted) images.
	SetLook2000	Sets a flag indicating whether the application GUI elements have Microsoft Office 2000 look and feel.
	SetMainButtonColor	Sets color of main Ribbon button (pearl).
	SetMenuFlatLook	Sets a flag indicating whether the application menu buttons have the flat look.
	SetMenuShadowDepth	Sets the width and height of the menu shadow.
	SetShadowHighlightedImage	Sets a flag that indicates whether to display the shadow when rendering highlighted images.
Static Public Member Functions inherited from CBCGPVisualManager2003
	IsDefaultWinXPColorsEnabled	Tells whether the Visual Manager uses native WindowsXP theme colors or colors obtained from GetSysColor.
	IsUseGlobalTheme	Tells whether a global Windows theme is used.
	SetDefaultWinXPColors	Specifies whether to use native WindowsXP theme colors or colors obtained from GetSysColor.
	SetUseGlobalTheme	Enables or disables using of Windows global theme.
Static Public Member Functions inherited from CBCGPVisualManager
	GetInstance	Returns a pointer to the visual manager object.
	RedrawAll	Forces all control bars in the application to be redrawn.
	SetDefaultManager	Sets the default visual manager.
